RMS2000

Thương hiệu Sick

(0 đánh giá)

Giá bán: Vui lòng liên hệ

(Gọi điện, chat Zalo nhận báo giá rẻ hơn)

2D radar sensor for reliable object detection in especially harsh weather conditions

The RMS2000 radar sensor detects objects very reliably, even under especially harsh ambient and weather conditions, e.g., in strong rain or snowfall, thick fog, or high dust loads. Detection fields can be flexibly configured in the working range of the sensor. This enables the RMS2000 to simultaneously and very accurately detect distances, angles and speeds of objects. Depending on the parameterization of the device, detections classified as relevant can be signaled via the digital outputs, or measurement data transmitted via the Ethernet interface for further use.

Tình trạng:

Còn hàng

Tag: Radar sensors ,

Chia sẻ

RMS2000 AT A GLANCE

Simultaneous detection of multiple object distances, angles and speeds

Integrated field evaluation or output of measured values selectable

Flexible configuration, easy to parameterize

Quick and easy sensor cleaning

Can be used internationally (certifications for numerous countries)

Modern FMCW radar technology

Integrated digital inputs and outputs as well as Ethernet interface

Sensor parameterization via web browser

Enclosure ratings: IP67 and IP69

Base frequency of 61 GHz with a bandwidth of 500 MHz

Advantages

Radar technology for industrial use

The RMS2000 radar sensor is designed for industrial use and consistently geared to the application requirements of countless branches. Not least due to the use of extremely powerful algorithms adapted to industrial applications, the RMS2000 stands out due to its detection performance, especially under very harsh ambient and weather conditions such as fog, rain, snow, dust and extreme temperatures.

The detection performance of the RMS2000 is not influenced even by rain, fog, dust, snow and extreme temperatures. At the same time, the RMS2000 is not light-dependent and can therefore be used during the day and at night.

The FMCW (Frequency Modulated Continuous Wave) technology enables the RMS2000 to detect multiple static and dynamic objects simultaneously and determine their speeds via the Doppler effect.

Reliability you can build on

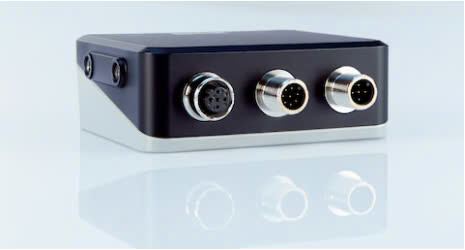

High-quality and rugged aluminum housing that can withstand even very demanding industrial conditions.

The pressure compensation diaphragm prevents negative effects due to rapid internal pressure changes. These are caused by rapid changes in temperature.
