Dx35

Thương hiệu Sick

(0 đánh giá)

Giá bán: Vui lòng liên hệ

(Gọi điện, chat Zalo nhận báo giá rẻ hơn)

Larger than life performance – flexible measurement and detection up to 35 m

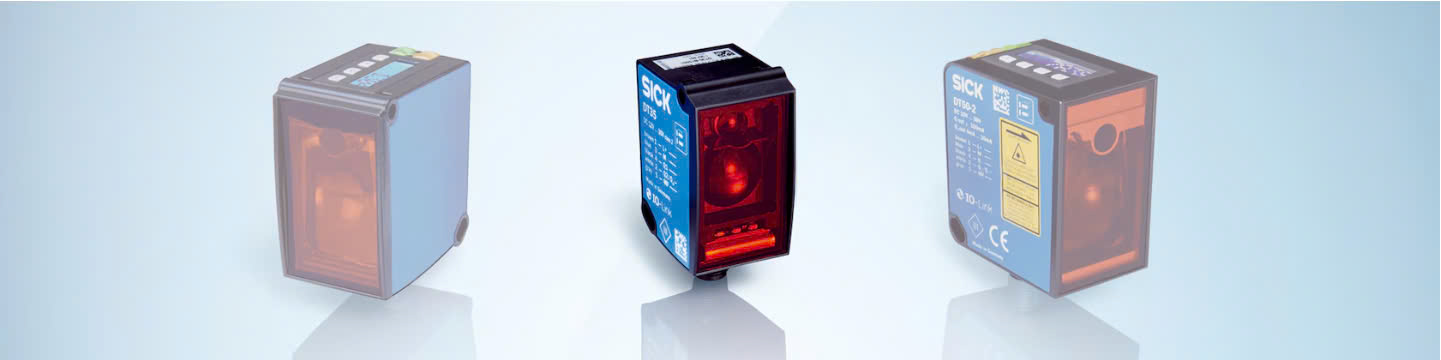

The Dx35 family of distance sensors, based on HDDM™ technology, combine maximum reliability, measuring capabilities, flexibility and the perfect price-performance ratio in a very compact housing.Depending on the application, sub-product families are available for distance measurement on natural objects (DT35 and DS35) or on reflective tape (DL35 and DR35).The sub-product families also come with different interfaces. In addition to the IO-Link function, which all the devices have, the product family also offers sensors with analog and switching output (DT and DL) or the option of two switching outputs (DS and DR). Its final distinguishing feature when selecting the right sensor for the application is the light sender: infrared or red light in laser class 1 or 2.

Tình trạng:

Còn hàng

Tag: Laser distance sensors ,

Chia sẻ

Dx35 AT A GLANCE

Precise and reliable measurement irrespective of object color extends running times and process quality

A compact size and blind zone make flexible mounting possible when space is limited

Optimum solution thanks to flexible settings for speed, range and repeatability

Flexible interface use: 4 mA to 20 mA, 0 V to 10 V, current sourcing output, current sinking output, or IO-Link – making machine integration simple

With their straightforward alignment, optimal performance or inconspicuous measurement, versatile light senders make for an ideal solution in all scenarios

Low investment costs and high performance levels guarantee a short return on investment

IO-Link offers full process control, from commissioning through to service

DT35-S - Certification up to performance level b allows versatile use for protecting persons and capital goods

Highest reliability, ambient light immunity and best price/performance ratio thanks to HDDM technology

Measuring range of 0.05 m to 12 m for natural objects or 0.2 m to 35 m for reflective tape

Devices with analog and digital output, or just switching
Infrared or red emitted light in laser class 1 or 2

Repeatability: 0.5 mm to 5 mm

Compact housing size

IO-Link

DT35-S - Certified to ISO 13849 (PL b) and IEC 62998 (PC B)

Advantages

Dx35 – Larger-than-life performance

The Dx35 mid range distance sensors reflect SICK’s long-standing expertise in the area of distance sensor technology. SICK has created what was previously thought to be impossible. The attractive housing design combined with exceptional performance make the Dx35 the number one choice for use in confined spaces with a scanning range of up to 35 m.

Adaptable

The Dx35's response time can be customized to keep track of even the fastest production processes.

Focused

With its HDDM technology, the Dx35 guarantees precise measurements across the entire color spectrum.

Resolute

Some objects can make a task unsolvable. But not for the Dx35, which can detect and measure even extremely dark and shiny objects as well as objects inclined at extreme angles.

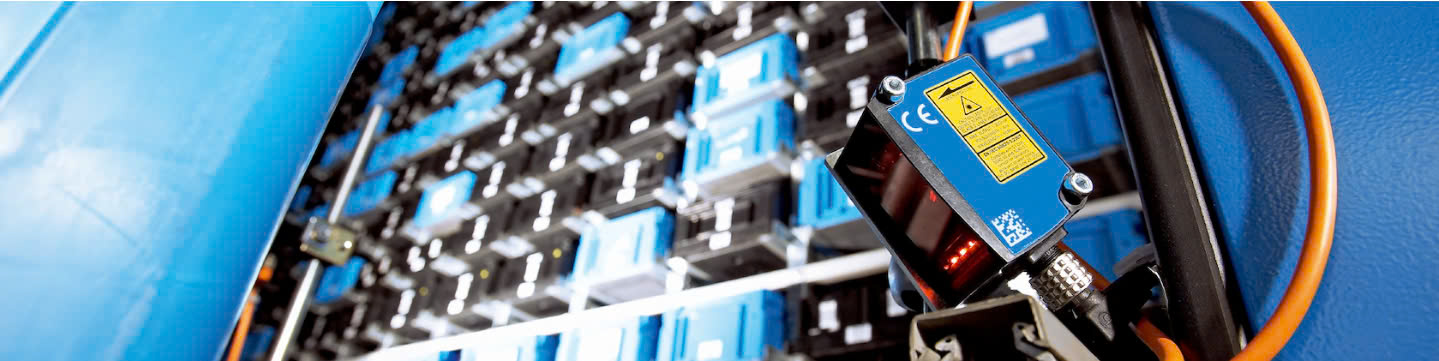

Variable distance measurement in storage and conveyor systems

The Dx35 can be used in a wide variety of applications across all industries. In storage and conveyor systems, for example, it provides reliable empty bay and fill level detection.

Collision avoidance in shuttle warehouse systems

Empty bay detection with automated guided vehicles

Detecting overlapping wooden boards

IO-Link

As co-founder of IO-Link, SICK offers one of the broadest IO-Link portfolios on the market. Smart Sensors with IO-Link generate and receive data and information which goes beyond conventional switching signals or measured process parameters. This allows them to create substantial increases in efficiency, more flexibility, and better planning security for predictive maintenance of machines and systems. Benefit from SICK’s extensive experience with a wide range of sensing technologies, and now also in combination with the SIG100 and SIG200 Sensor Integration Gateways.

To find out more on the topic of “IO-Link”, speak to your contact person at SICK or click here.

Consulting and design

Application-specific advice on the product, its integration and the application itself.

Commissioning and maintenance

Application-optimized and sustainable ─ thanks to professional commissioning and maintenance by a trained SICK service technician.

Service contracts

Extended warranty, SICK Remote Service, 24-hour helpdesk, maintenance, availability guarantees and other modular components can be individually combined on request.
